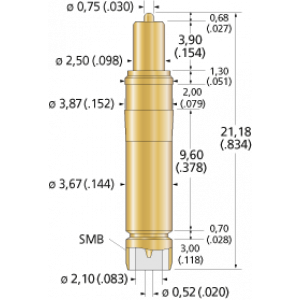

FK-661
Centre pin max. travel2,70 mm
Centre pin working travel1,90 mm
Centre pin spring force at working travel1,0 N
Shield max. travel2,10 mm
Shield Working Travel1,20 mm
Shield spring force at working travel2,0 N
Temperature range from-40 °C
Temperature range to90 °C
Wave impedance50 Ohm
Frequency rangeDC to 6 GHz
SMB plug-in connection, developed for a docking system for different radio frequencies (WLAN, UMTS etc.). Suitable mating contact (rigid): FK-652.
