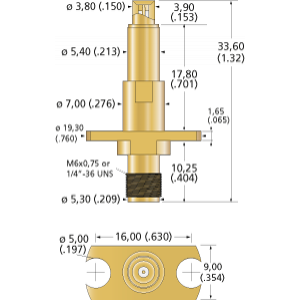

10107.001D

Centre pin max. travel3,00 mm
Centre pin working travel2,00 mm
Centre pin spring force at working travel0,8 N
Shield max. travel2,90 mm
Shield Working Travel1,90 mm
Shield spring force at working travel2,3 N
Temperature range from-40 °C
Temperature range to90 °C
Wave impedance50 Ohm
Frequency rangeDC to 6 GHz
Insertion Loss DC to 3 GHz0,6 dB
Insertion Loss 3 to 6 GHz1,5 dB
Compatible with muRata MM126036, however with replaceable centre pin.

Two versions available: a) M6 x 0.75 mm thread: 10107.001D-M b) 1/4“-36 UNS (SMA): 10107.001D-U
